Spirabel Balnéo/swimming pool

The Spirabel Balnéo/Pool hose is specifically designed for pool equipment and balneotherapy installations.

Read moreShow less

Data sheet

Hose's name
Spirabel Balnéo/piscine
Use
Suction and backflow (big flow)
Type of hose
Hoses reinforced by a spiral
Application
Transfer of water, Multi-use
Conditioning
50 m pipe coil, 25 m pipe coil
Technical Sheet
https://www.axesspack.fr/media/fiches-techniques/spirabel-balneo-2016.pdf
Internal diameter
55.5 mm, 43.4 mm, 33.4 mm, 26.3 mm
Coil
25 m, 50 m
More information Express quote

Get your express quote for this product

Need a large quantity? Get a negotiated price on this combination within 24 hours. Free and no obligation.


Requested product :
Spirabel Balnéo/swimming pool (id : 577)


+60°C to -15°C
Phthalates free
80 bar
€6.12 (tax excl.) / mètre
(€7.34 TTC/m)

Minimum of order : 20 € (VAT ex.)

Free delivery in France from 250€ (VAT ex.)

Configure your product

Outside diameter
Length
Couleur
  • White
This hose is sold in coils of 25 m at a price of (Vat ex.)

Order now and receive it...

Transporteur DPD, TNT ou DB Schenker between Tuesday 24 November and Wednesday 25 November  with  Transporteur DPD, TNT ou DB Schenker

Choose your reference

Refine your selection to display the available references.

Reference Outside diameter Hose length Couleur tuyau Price Qty

Description

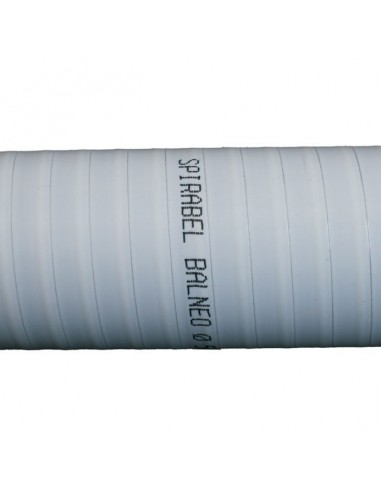

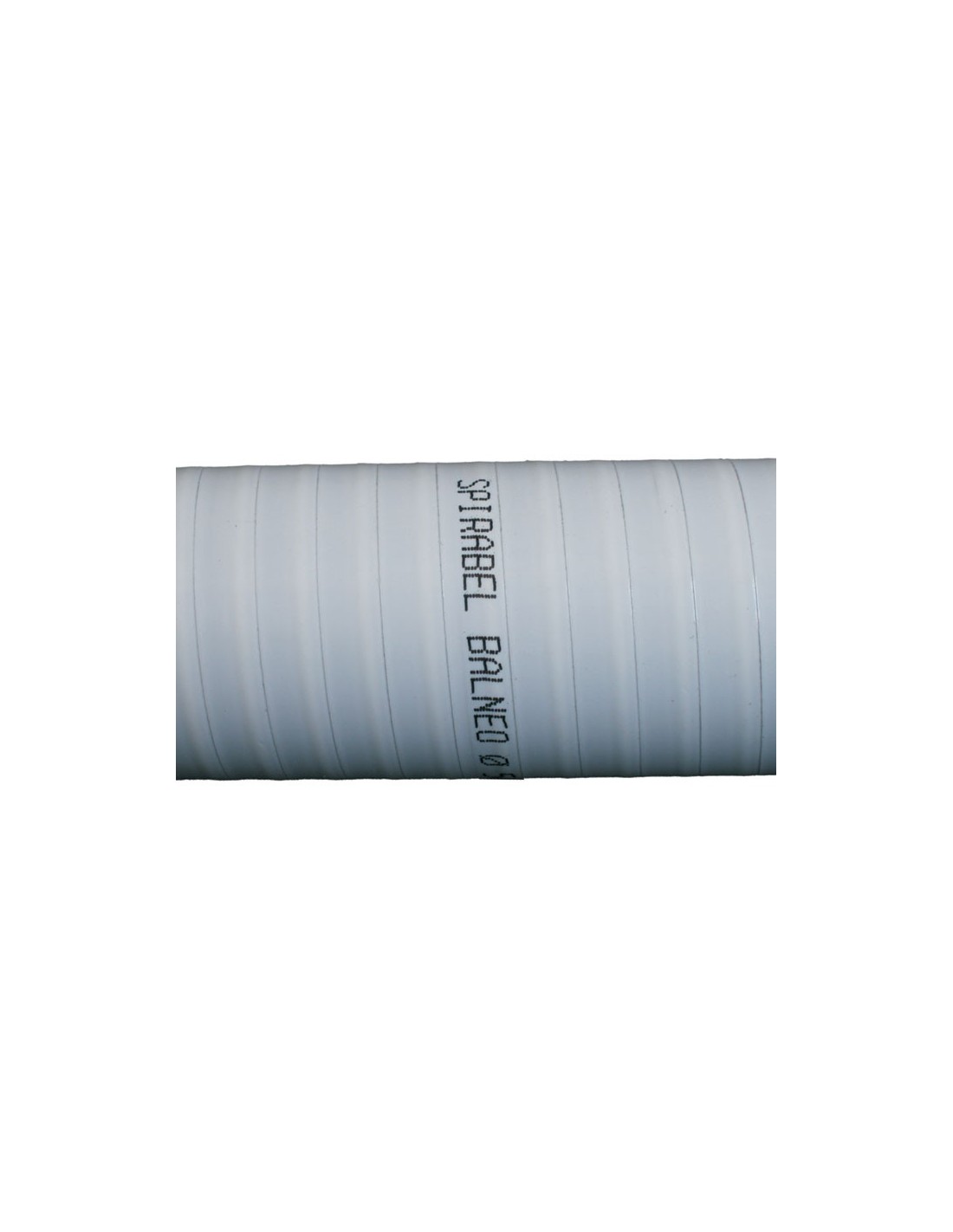

Tricoflex Spirabel® Balnéo Piscine, flexible reinforced PVC hose for pools and spas

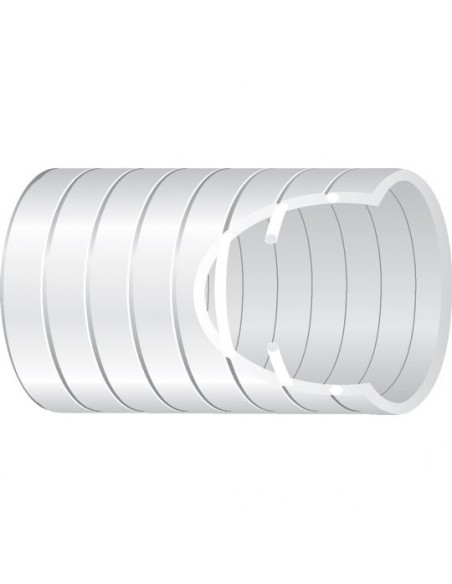

The Spirabel® Balnéo Piscine is a white hose designed for water circulation in swimming pool and spa installations. Its flexible PVC wall incorporates an impact-resistant rigid PVC helix for high crush resistance and good vacuum performance.

The inside and outside surfaces are smooth. The closely controlled outside diameter allows the hose to fit into a matching pool socket fitting for bonded installation.

Spirabel® Balnéo Piscine hose applications

  • Swimming pool circulation systems – Connect suction lines to the pump and return lines to the pool, according to system requirements.
  • Spas and hydrotherapy installations – Connect equipment in the water circulation system using compatible fittings.

Industries and sectors

  • Swimming pool construction, refurbishment and maintenance
  • Installation and servicing of spa and hydrotherapy equipment

Check the chemical compatibility of the Spirabel® Balnéo Piscine hose

This version is designed for installations with standard water treatment conditions. Before choosing the hose, check its compatibility with the chemicals used, their concentration and the water temperature. This is especially important where shock treatment or intensive disinfection is used. Use the RaccordsPro hose chemical compatibility tool.

Choose the outside diameter, coil length and working pressure

  • Outside diameter – 32, 50 or 63 mm, with a tolerance of ±0.4 mm. Select the size that matches the socket of the pool fitting.
  • Hose temperature range – −15 to +60 °C.
  • Maximum working pressure at 23 °C – 5 to 7 bar depending on size. Check the allowable pressure at the actual operating temperature.

When routing the hose around a bend, allow at least the radius shown in the table.

Coil lengths, pressure ratings and bend radii by outside diameter
Outside Ø (mm) Coil length (m) Max. working pressure at 23 °C (bar) Non-burst pressure limit at 23 °C (bar) Bend radius (mm)
32 25 7 21 80
50 25 or 50 6 18 190
63 25 5 15 250

Fittings and installation for the Spirabel® Balnéo Piscine hose

Use pool socket fittings for bonded installation, sized to match the hose’s outside diameter. The recommended adhesive is 3M™ 4475. Follow the adhesive application instructions before putting the system into service.

The hose can lengthen under pressure, particularly above 40 °C. Allow for this when choosing the hose length and routing. The hose marking identifies the outside diameter and batch number.

Read moreShow less
Product Details
070796

Data sheet

Hose's name
Spirabel Balnéo/piscine
Use
Suction and backflow (big flow)
Type of hose
Hoses reinforced by a spiral
Application
Transfer of water, Multi-use
Conditioning
50 m pipe coil, 25 m pipe coil
Technical Sheet
https://www.axesspack.fr/media/fiches-techniques/spirabel-balneo-2016.pdf
Internal diameter
55.5 mm, 43.4 mm, 33.4 mm, 26.3 mm
Coil
25 m, 50 m

Specific References

ean13
3506111687293
