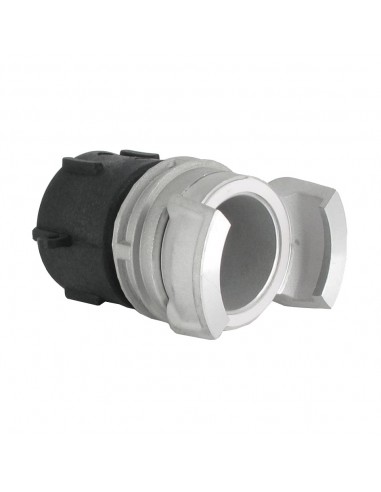

Symmetrical half-coupling with lock - PP/Alu - Female thread

Data sheet

Nominal diameter
40 mm to 50 mm
Material
Aluminium / PP
Adapter output
Female output
Use
To screw
Lock type
With lock
Gasket
NBR
Technical Sheet
https://www.axesspack.fr/media/fiches-techniques/AXP-FT-RSAV-F.pdf
More information Express quote

Get your express quote for this product

Need a large quantity? Get a negotiated price on this combination within 24 hours. Free and no obligation.


Requested product :
Symmetrical half-coupling with lock - PP/Alu - Female thread (id : 613)


€36.58 (tax excl.) / unit
(€43.90 TTC)

Minimum of order : 20 € (VAT ex.)

Free delivery in France from 250€ (VAT ex.)

Configure your product

DN
Sortie
Ø output

Order now and receive it...

Colissimo Points de retrait et bureaux de poste between Tuesday 24 November and Wednesday 25 November  with  Colissimo Points de retrait et bureaux de poste

Colissimo Expert (Domicile contre signature) between Tuesday 24 November and Wednesday 25 November  with  Colissimo Expert (Domicile contre signature)

Transporteur DPD, TNT ou DB Schenker between Tuesday 24 November and Wednesday 25 November  with  Transporteur DPD, TNT ou DB Schenker

Choose your reference

Refine your selection to display the available references.

Reference DN Sortie Ø output Price Qty

Description

Polypropylene and aluminium Guillemin half couplings with locking ring and female S60×6 thread

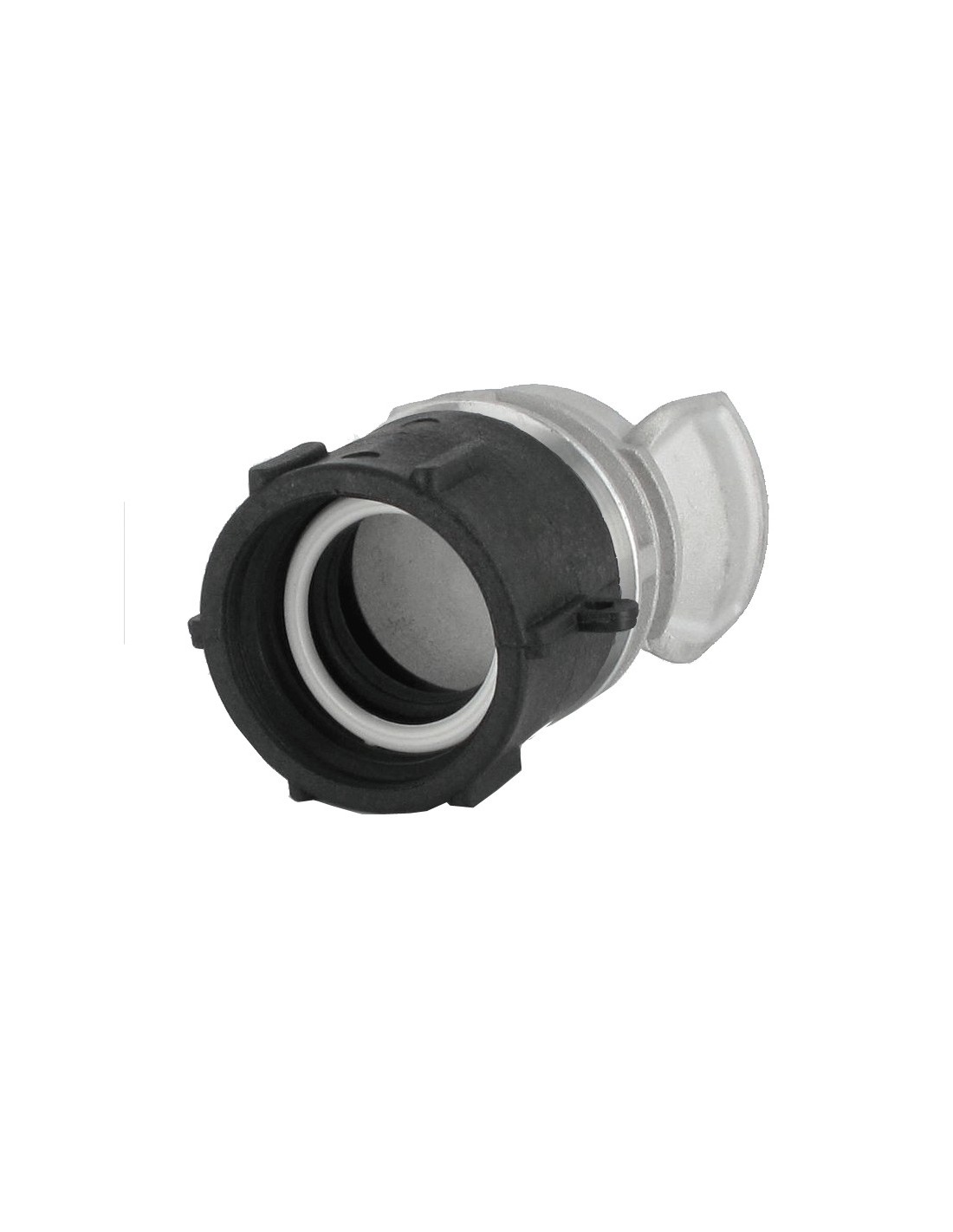

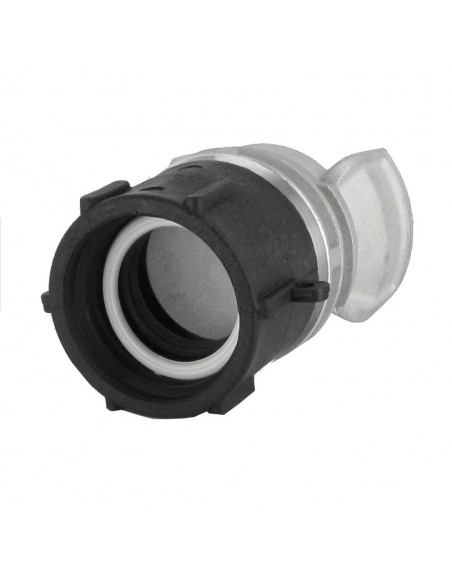

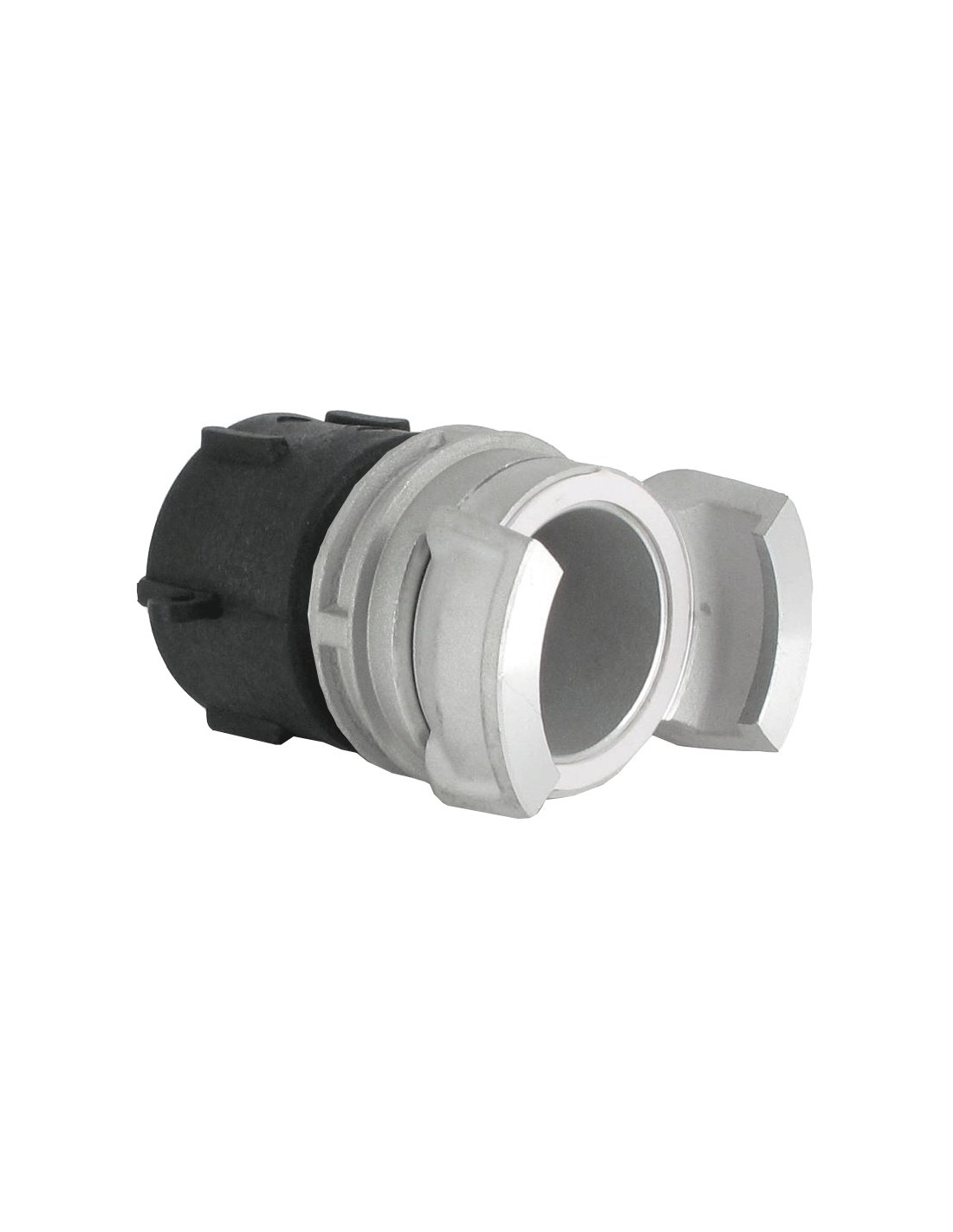

This range lets you quickly connect a hose to an IBC fitted with a male S60×6 valve outlet. Each assembly combines a female S60×6 threaded polypropylene (PP) adaptor that screws onto the valve and an aluminium Guillemin symmetrical half coupling with a locking ring at the hose end.

  • IBC valve end — 2″ female S60×6 thread for a compatible male IBC valve outlet.
  • Hose end — DN 40 or DN 50 Guillemin symmetrical coupling with a locking ring.
  • White food-grade NBR seal — For food applications, check that every component in contact with the product is suitable for food contact.

Applications for IBC tanks

  • Draining and dispensing — Connect a hose to the valve to transfer the contents into another container or deliver them to the point of use.
  • Pumped transfer — Connect the IBC outlet to the pump’s suction line using a hose fitted with a Guillemin half coupling of the same DN.
  • Frequent hose changes — Leave the adaptor screwed onto the valve and use the Guillemin coupling to connect and disconnect the hose.

Choosing between DN 40 and DN 50

Both versions have the same female S60×6 thread at the IBC end. Choose the DN to match the Guillemin half coupling fitted to your hose.

  • DN 40 × female S60×6 — Part no. 040326, for use with a DN 40 Guillemin half coupling.
  • DN 50 × female S60×6 — Part no. 040329, for use with a DN 50 Guillemin half coupling.

The 2″ S60×6 designation refers to a coarse IBC valve thread. 2″ BSP is a different thread type. To identify your valve outlet before ordering, see our IBC tank valve thread guide.

Fitting the adaptor to the valve and locking the Guillemin coupling

  1. Close the IBC valve. Check that the mating surfaces are clean, then screw the female adaptor onto the male S60×6 outlet.
  2. Check the condition of the seal and mating faces, then bring the two Guillemin half couplings of the same DN together, face to face.
  3. Turn the locking ring to engage the lugs. Check that the coupling is fully locked before opening the valve.

Checking the chemical compatibility of polypropylene, aluminium and NBR

Check that the polypropylene, aluminium and NBR seal are compatible with the liquid being transferred, its concentration and its temperature. Use our chemical compatibility tool for materials.

Complementary products for your IBC connection

Technical data sheet for Guillemin half couplings with locking ring and female thread

Download the technical data sheet listing the DN 40 and DN 50 polypropylene and aluminium versions (PDF)

Read moreShow less
Product Details
040329

Data sheet

Nominal diameter
40 mm to 50 mm
Material
Aluminium / PP
Adapter output
Female output
Use
To screw
Lock type
With lock
Gasket
NBR
Technical Sheet
https://www.axesspack.fr/media/fiches-techniques/AXP-FT-RSAV-F.pdf
